PF-MT-100
Microchip Programming Fixture

Description

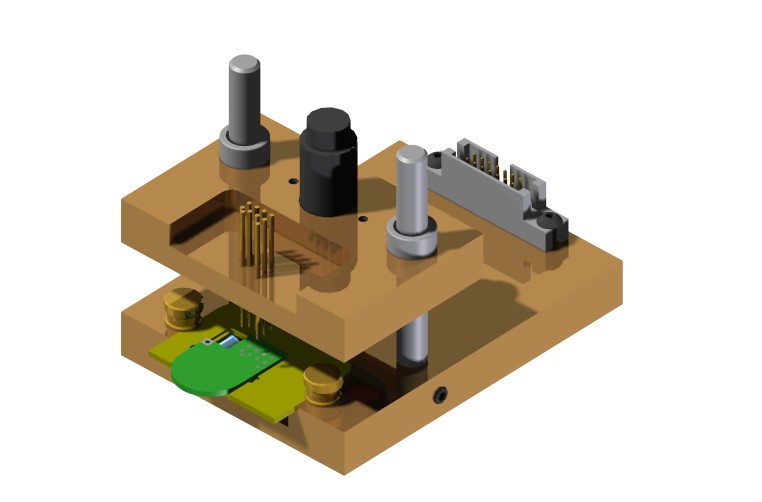

Radios, Inc.'s programming fixtures are custom made fixtures capable of in-circuit programming any Microchip part. With the PCB secured in a custom made nest, spring loaded programming pins are lowered and lock into place with a magnetic catch. When programming is complete the pins release back into the up position and the next PCB can be inserted.

This fixture is easily adaptable to any shape circuit board and pad configuration. Ball bearing bushings and spring loaded pins ensure smooth movement and consistent pin-to-pad contact. These fixtures are efficient, durable, and easy to use.


Key Features

Garolite base
Ball bearing movement


Spring loaded programming pins
Custom made to fit board size and shape

Downloads
     Data Sheet - Technical data for the PF-MT-100 programming fixture (pdf)
