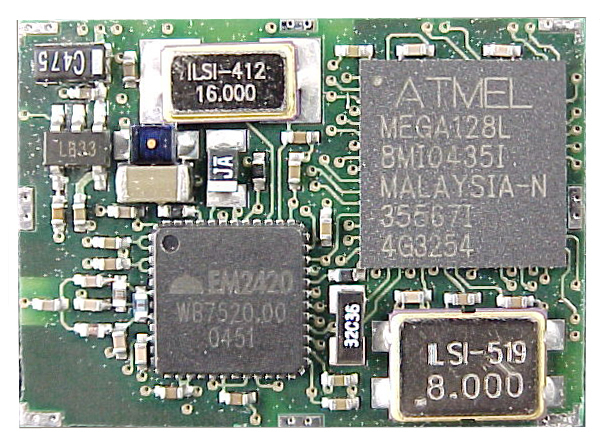

MXR-EM20
Zigbee Transceiver Module

Description

The MXR-EM20 is a 2.4 GHz RF transceiver designed for low-power and low-voltage wireless applications. The MXR-EM20 includes a digital direct sequence spread spectrum baseband modem and an effective datarate of 250 kbps. The MXR-EM20 is compatible with a licensed Ember networking stack. The MXR-EM20 is a low-cost, highly integrated solution for robust wireless communication in the 2.4 GHz unlicensed ISM band. It is designed to comply with world-wide regulations covered by EN 300 440 (Europe), CFR47 Part 15 (US) and ARIB STD-T-66 (Japan). The MXR-EM20 provides extensive hardware support for packet handling, data buffering, burst transmissions, data encryption, data authentication, clear channel assessment, link quality indication and packet timing information.

The configuration interface and transmit / receive FIFOs of the MXR-EM20 are accessed via a SPI interface.
Key Features

Low cost
RF transceiver with baseband modem, MAC support
   and networking stack
Low current consumption
Low supply voltage with integrated voltage regulator
Easily integrated
Low supply voltage with external voltage regulator
Compact surface-mount packages/small size
Programmable output power
DSSS baseband modem w/ 2MChips/s and 250 kbps
    data rate
Suitable for both RFD and FFD operation
No external RF switch/filter needed
I/Q low-IF receiver
Digital RRSI/LQI support
I/Q direct upconversion transmitter
Can support EN 300 440 and FCC CFR-47 part 15,
    ARIB STD-T-66
Hardware MAC encryption
Typical Applications

2.4 GHz IEEE 802.15.4 systems
ZigBee systems
Consumer Electronics
Industrial Control
Home / Building automation
PC peripherals

Downloads
     Data Sheet - Full technical data for the MXR-EM20 transceiver module (pdf)
