CB-MXR-EM20
Zigbee Transceiver Carrier Board

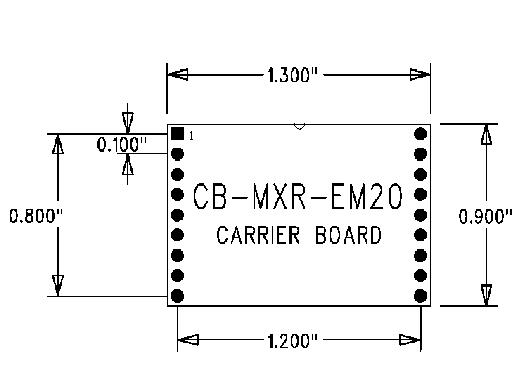

Mechanical Diagram


Pin hole size: 0.034"
Pin length: 0.237"

Downloads
     Data Sheet - Full technical data for the CB-MXR-EM20 transceiver carrier board (pdf)
