Q from A to Z

AUTHOR: Randall W. Rhea
FORMAT: CD-ROM
PUBLISHED: 2001
ISBN: 1-884932-22-3

$99.00

Item # NP-41

Back to products page.

Q from A to Z explains the concept of Q and how it can be applied to understanding the relationship between loss and bandwidth in filters, the design of oscillators with improved stability and phase noise, and the best possible match for a given bandwidth and load characteristics. The course includes sample problems and solutions, a bibliography of source materials, Web links and the complete text of Randy Rhea's reference article, "Multimode High-Frequency Inductor Model."

SYSTEM REQUIREMENTS

  • Windows 95 or higher Pentium II 333 MHz or faster 64 MB RAM CD-ROM drive
  • sound card

PUBLISHER'S COMMENTS
This easy to navigate tutorial is designed for beginning wireless and RF engineers and those who wish to review the many forms of Q. No knowledge of higher math required; some familiarity with RF design and measurement terms helpful. This 50-minute course:

  • allows you to move through each session at your own speed, requires no extra work books,
  • provides you with testing methods for the key concepts taught.

NAVIGATING Q from A to Z
Navigation is similar to any computer-based information application. Clearly designated sections with an intuitive layout leave no frustrating distractions.

  1. The CD-ROM can be started from any PC that has Windows 95 (or higher), at least 64 MB of RAM, a sound card and speakers.
  2. The material may be accessed by either choosing to view the course start to finish, or by choosing individual pages of interest.
  3. Once the course is started, no interaction is required. The course can be paused at any point, and can be viewed page by page like a book.

TABLE OF CONTENTS

  • Section 1. Introduction
  • Section 2. Unloaded Q Or Component Q
    Definition of Unloaded Q
    Unloaded Q of a Reactor
    Unloaded Q with Parallel Loss
    Solenoid Inductance
    Solenoid Unloaded Q
    Qu and Volume
    Qu for Typical Solenoids
    Limit on the Unloaded Q
    Capacitor Unloaded Q
    Unloaded Q of Chip Capacitors
  • Section 3. Loaded Q
    A Terminated Series Resonator
    The Response of a Series Resonator
    Loaded Q of a Simple Series Resonator
    Loaded Q in the Parallel Resonator
    The Response of a Parallel Resonator
    The Loaded Q of a Parallel Resonator
    Parallel-Series Equivalent Networks
    Parallel-Series Conversion Formula
    A Shunt-C Coupled Resonator
    The Coupling Reactance for a Required Loaded Q
    A Computer Simulation of a Coupled Resonator
    Loaded Q and Group Delay
    Loss in the Resonator
    A Computer Simulation of Resonator Loss

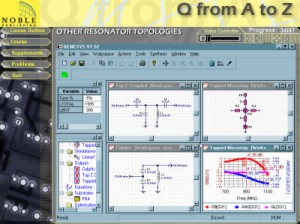

    Other Resonator Topologies
  • Section 4. Q and Matching Concepts
    Q and the Smith Chart
    Relationship Between Constant Q and Reflection Coefficients
    Q and Matching
    Q of the Load
    Fano's Limit
    Fano Limit Example
    A Practical Solution with 4 Elements
